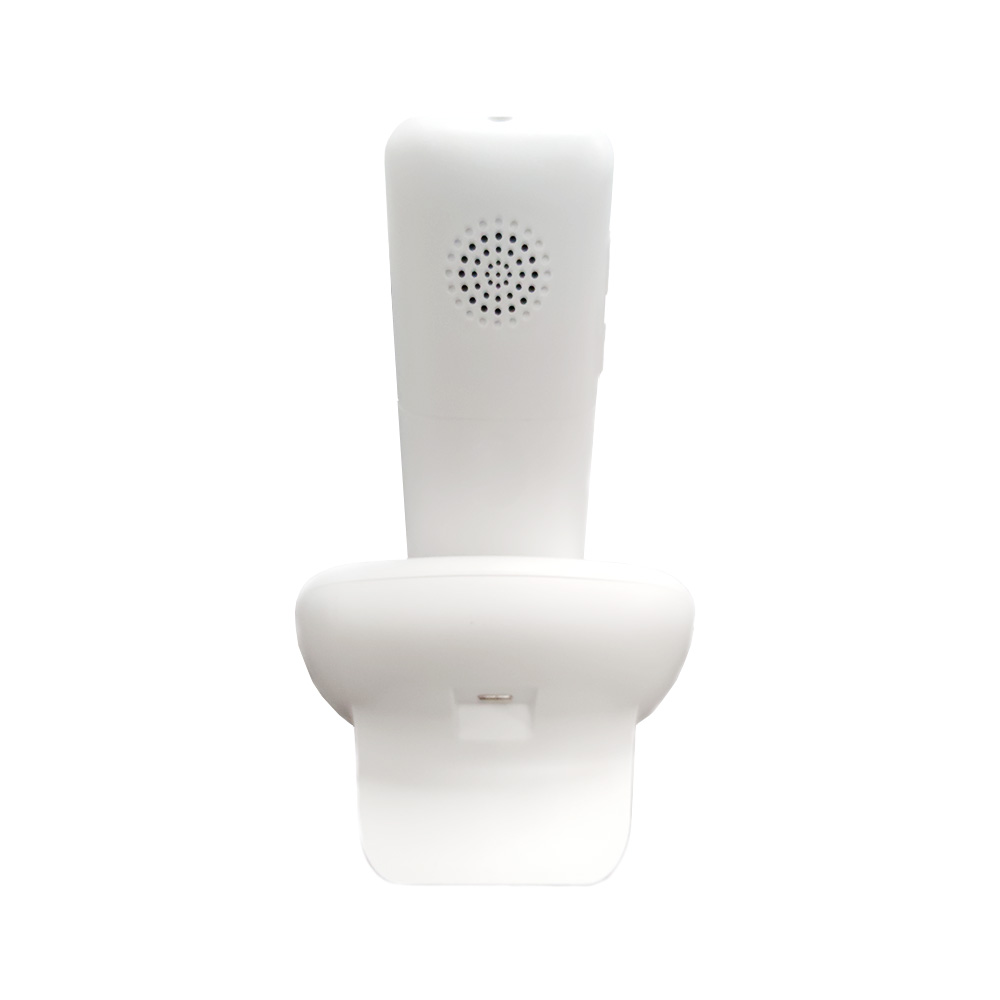

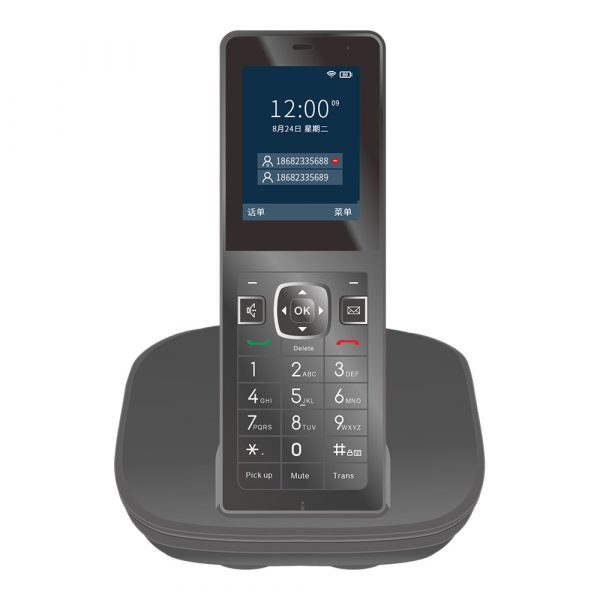

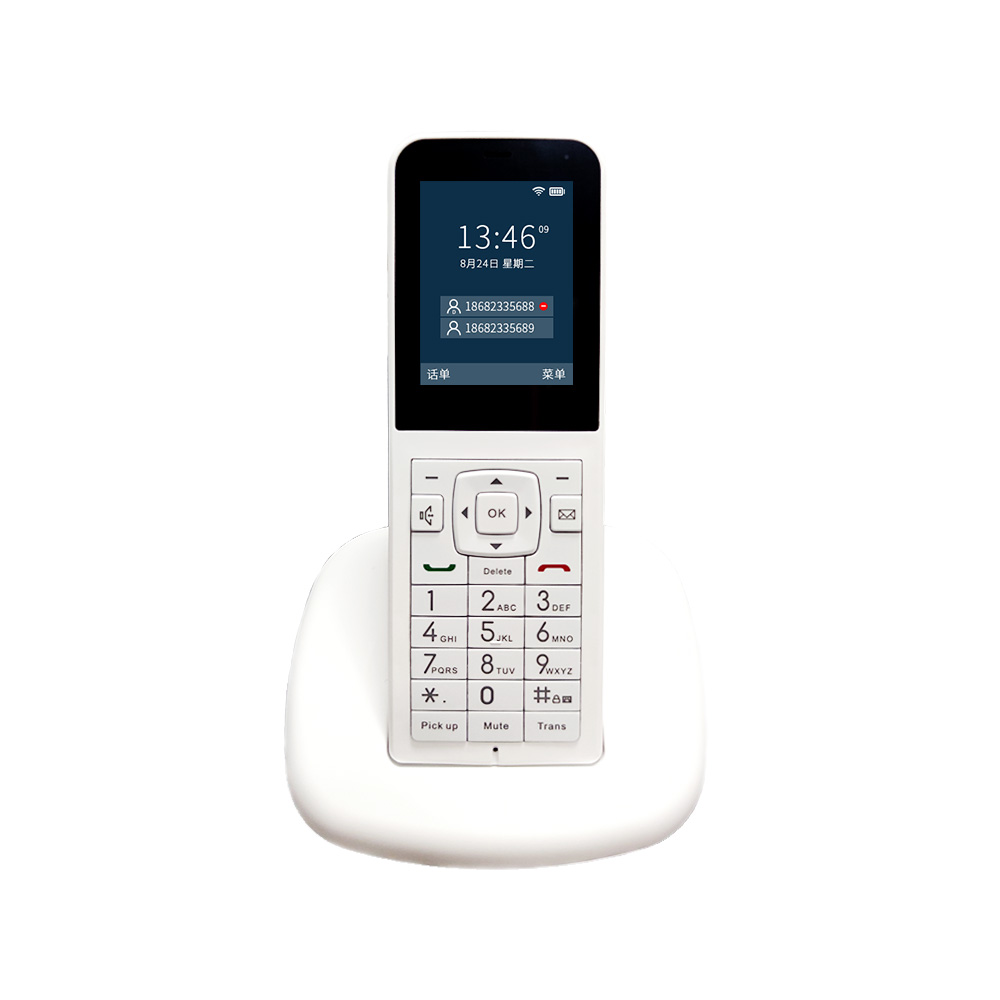

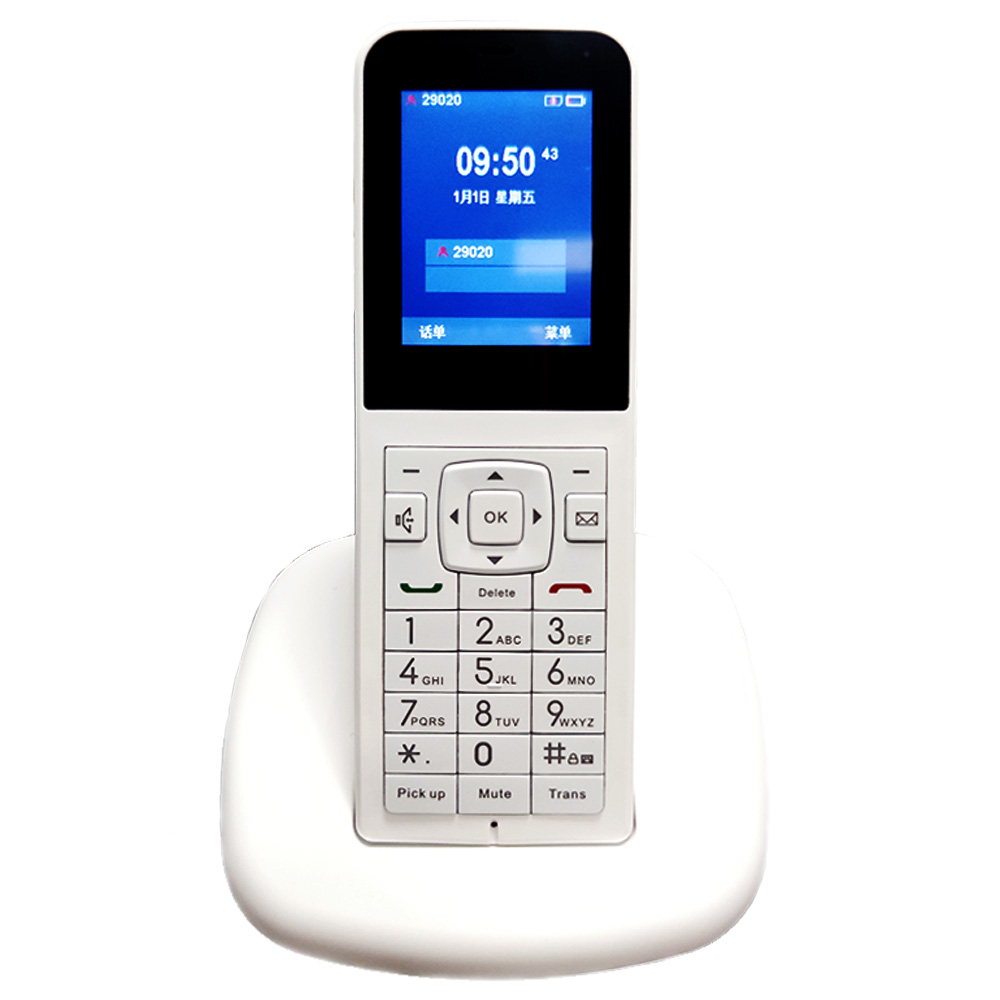

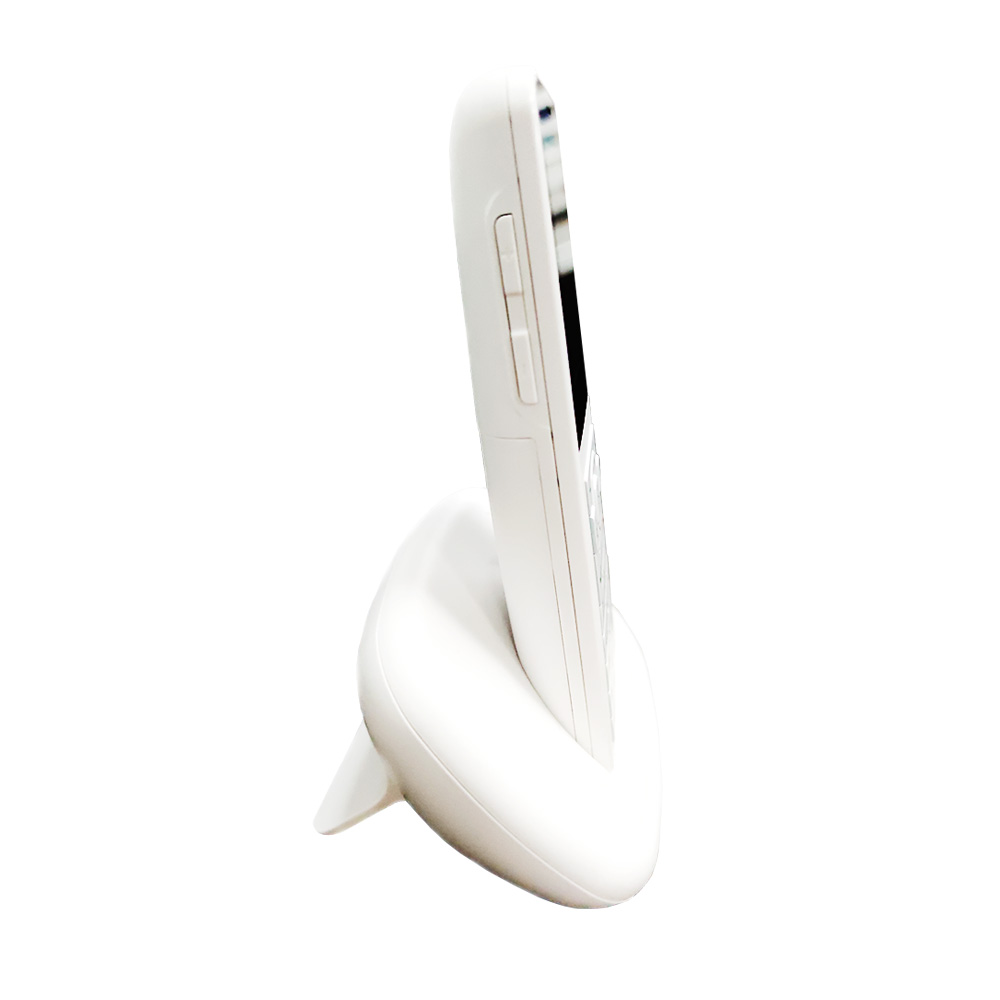

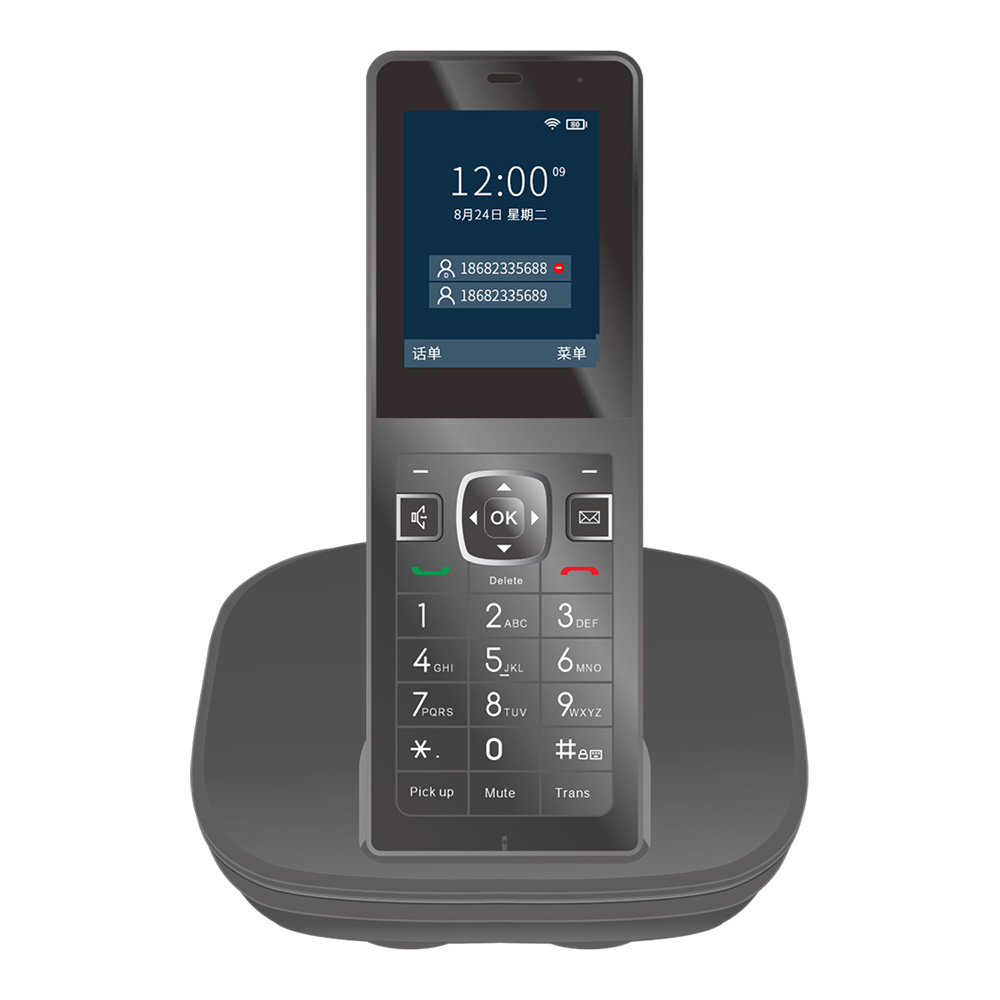

PH680 Dual-band Wi-Fi Phone
1. Portable wireless VoIP phone PH680, equipped with Linux system, rich functions and long talk time are suitable for various mobile communication places.
2. Dual-band Wi-Fi (2.4 GHz and 5 GHz) 802. 11 a/b/g/n module, (Optional 4G LTE full Netcom IoT SIM card)
3. Large 2.4-inch LCD true-color screen, with more natural icon colors and more comfortable visual sense;
4. Big battery capacity: 3000mA rechargeable Li-ion battery, up to 10 hours talking time
5. Multi-language: Support 17 languages switching and selection, high adaptability
6. HD sound quality: HD earpiece, HD speaker, support 3.5mm HD headset
7. HD high-definition audio: microphone echo cancellation, noise reduction technology
8. Business class portable phone: Optional 4GLTE full Netcom IoT SIM card Make your business trip more free!
9. Blacklist intelligent anti-harassment: Automatically block harassing and fraudulent calls
10. Supporting Two SIP accounts
11. Supporting remote locations roaming
12. Personalized customized ringtones: custom ringtones can be customized
13. 4G LTE Full Netcom: Compatible with China Telecom’s CDMA network, China Mobile GSM network, China Unicom GSM network
Product description
Hardware
1. Handset size: 160mm*55mm*24mm；
2. Charging base size: 116mm*100mm*106mm
3. Screen: 2.4” (240×320) TFT color screen
4. SIP Account: Support 2 SIP accounts
5. Physical interface: 3.5mm headphone jack, Type-C interface
6. Buttons and sensors: 2 soft buttons, dial button, hang up button, speaker, voice mail button, delete button, Transfer key, mute key, answer key, 12 standard phone number keys, 5 navigation keys, 2 volume up/down adjustment keys
7. Power supply: Universal power adapter. Input: 100-240VAC; Output: +5VDC, 1A (5W)
8. Big capacity battery: 3000mA rechargeable Li-ion battery, up to 10 hours talking time
Software
1. Operating System: Linux
2. Multi-Language: Support 17 languages (Simplified Chinese, Traditional Chinese, English, Turkish, Korean, Russian, French, Italian, German, Polish, Portuguese, Thai, Hindi, Arabic, Japanese, Spanish, Vietnamese language)
3. Protocol/standard: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, TFTP, NTP, STUN, SIMPLE, LDAP, TR-069, 802.1x, TLS, SRTP, Ipv6, LLDP-MED
4. Audio features: high-fidelity sound quality: HD handle, HD hands-free, HD headset
5. Broadband codec: G.722, Opus
6. Narrowband codec: G.711 (A/μ), G.723.1, G.729AB, G.726, iLBC
7. Wi-Fi: Built-in dual-band Wi-Fi (2.4GHz and 5.0GHz) 802.11a/b/g/n (optional model: SIP-PH680W)
8. LTE: Support 4G LTE full Netcom SIM card (optional model: SIP-PH680L)
9. QoS: 802.11e and Layer 3 QoS (ToS, DiffServ, MPLS),
10. DTMF: In-band transmission (In-band), out-of-band transmission (RFC 2833), SIP INFO, full-duplex hands-free, echo cancellation (AEC), voice activity detection(VAD), comfort noise generation (CNG), packet loss compensation (PLC), background noise detection (BNE), automatic gain control (AGC), dynamic adaptive RTP jitter buffer up to 300ms
11. Telephone functions: push-to-talk, emergency call, call hold, call transfer, call forwarding, five-party conference, phone book download (XML, LDAP, 1000 entries), call waiting, call records(1200 records), automatic dialing when off-hook, Automatic answer, click-to-phone function, operating system dialing, flexible dialing rules, personalized music ring tones and hold tones, PTT and multicast functions
12. Security protection: user and administrator-level passwords, based on MD5 and MD5-sess authentication, 256-bit AES security profile, SRTP, TLS call encryption, 802.1x media access control
13. Upgrade/configuration: upgrade firmware via TFTP / HTTP / HTTPS, PnP automatic deployment, web upload firmware upgrade, use TR-069 or AES encrypted XML configuration file for large-scale deployment
