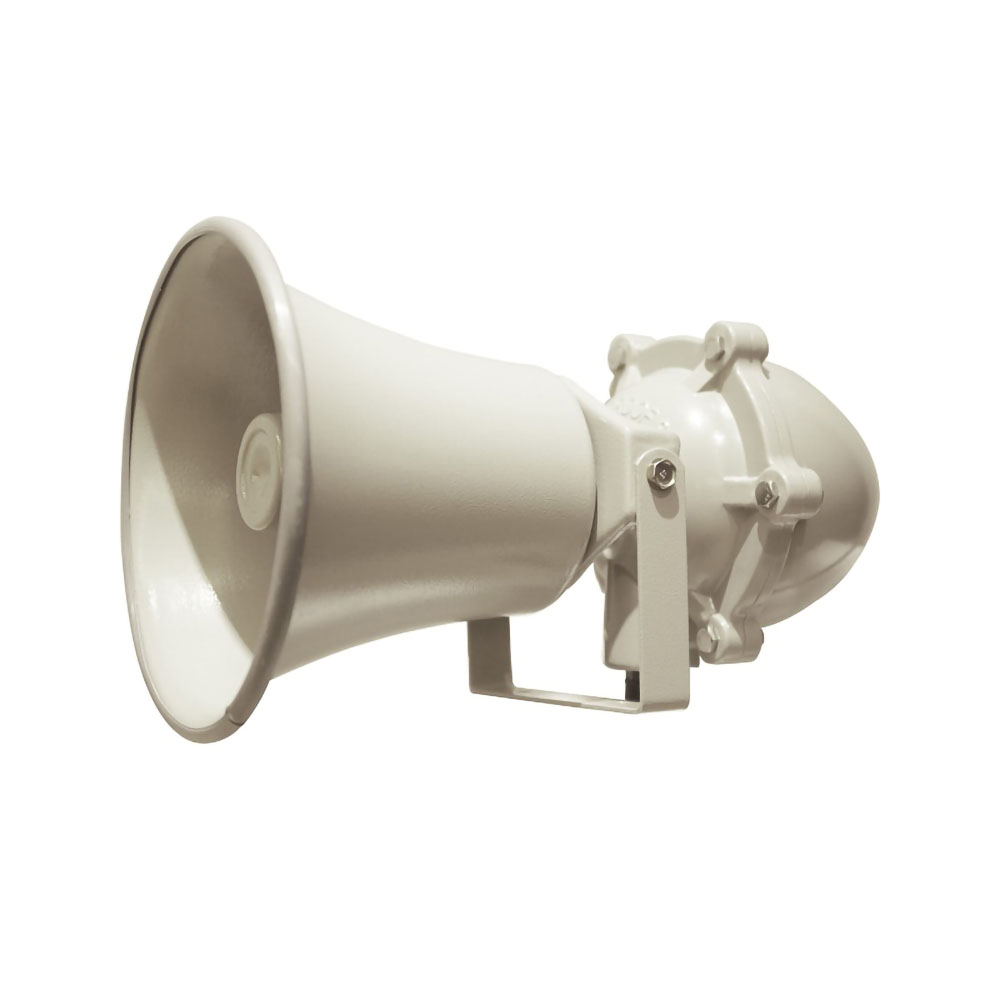

PEX50 ATEX horn speaker
ATEX horn speaker is actually a kind of conversion equipment that converts electrical energy into sound.
Product description
Feature
1. Explosion proof speaker design and certified by TUK ATEX standard.
2. Robust aluminium alloy die-cast body, Vandal & tamper-resistant easy Installation.
3. Waterproof rating IP66 dust proof.
4. Service temperature range from -50 degree to +60 degree.
5. The speaker wiring connections are enclosed in a dust-moisture-proof design.
6. 360° lossless broadcast
7. Transformer coupled
8. For use public address and paging application
9. Powder coated in UV stabilized polyester finish.
10. Application: marine, ship, offshore, mine, Tunnel, metro, speedway, power plant, bridge etc.
Specification
| Dimension | 260 (Ø)*412 (L) mm |
| Material | Aluminum |
| Rated Frequency Range | 300Hz ~ 8000Hz |
| Total Harmonic Distortion | 5% Max At 1kHz 1W |
| AC Impedance | 8 ±15% Ohm |
| DC Impedance | 6.4 ±7% Ohm |
| Speaker Weight | 4.9kg ± 10% |
| Material & Finish | Horn: Ivory, Others Dark Brown; Bracket: Zinc Plated Steel T3.0 |
| Working Environment | Temp -50°C~ +60°C, Humidity 45% 〜85%, |

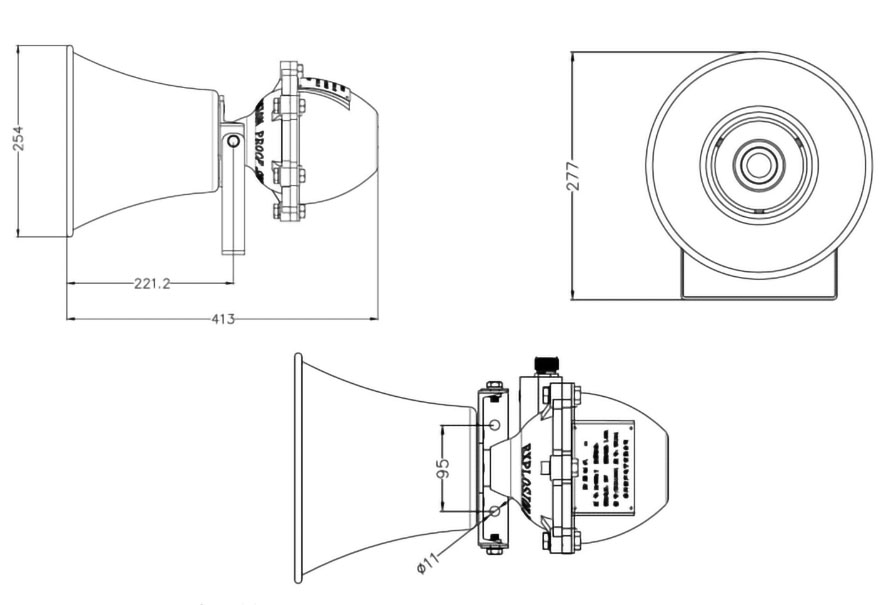

Dimension
Additional information
| Weight | 7.8 kg |
|---|---|
| Dimensions | 30 × 40 × 50 cm |
Related products
-
PEX8 Industrial VoIP Phone
$1.00 -
PEX5 ATEX Industrial Phone
$1.00 -
PESP09T2S Fixed Industrial IP Phone
$1.00 -

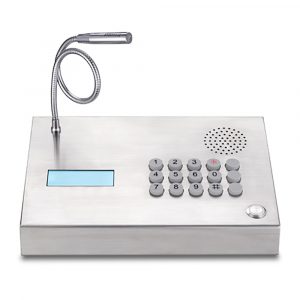

PE59ZD Intercom Phone
