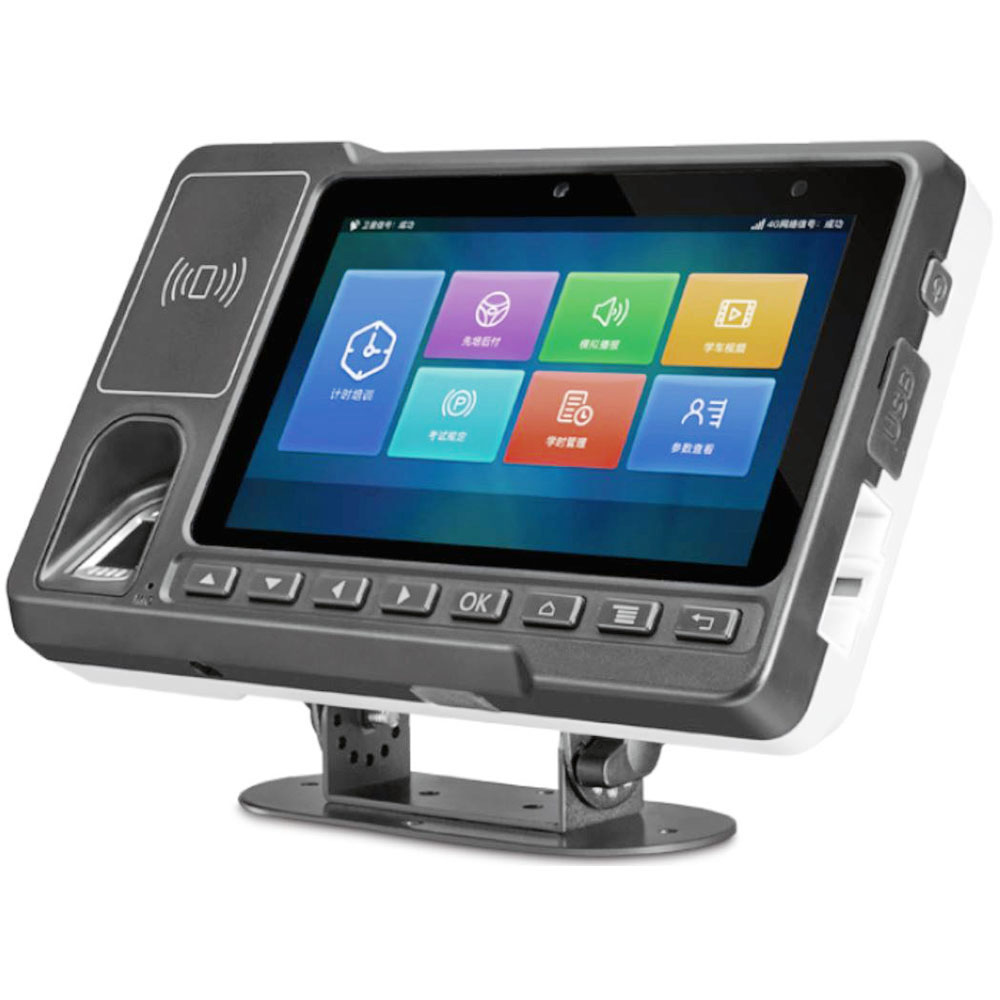

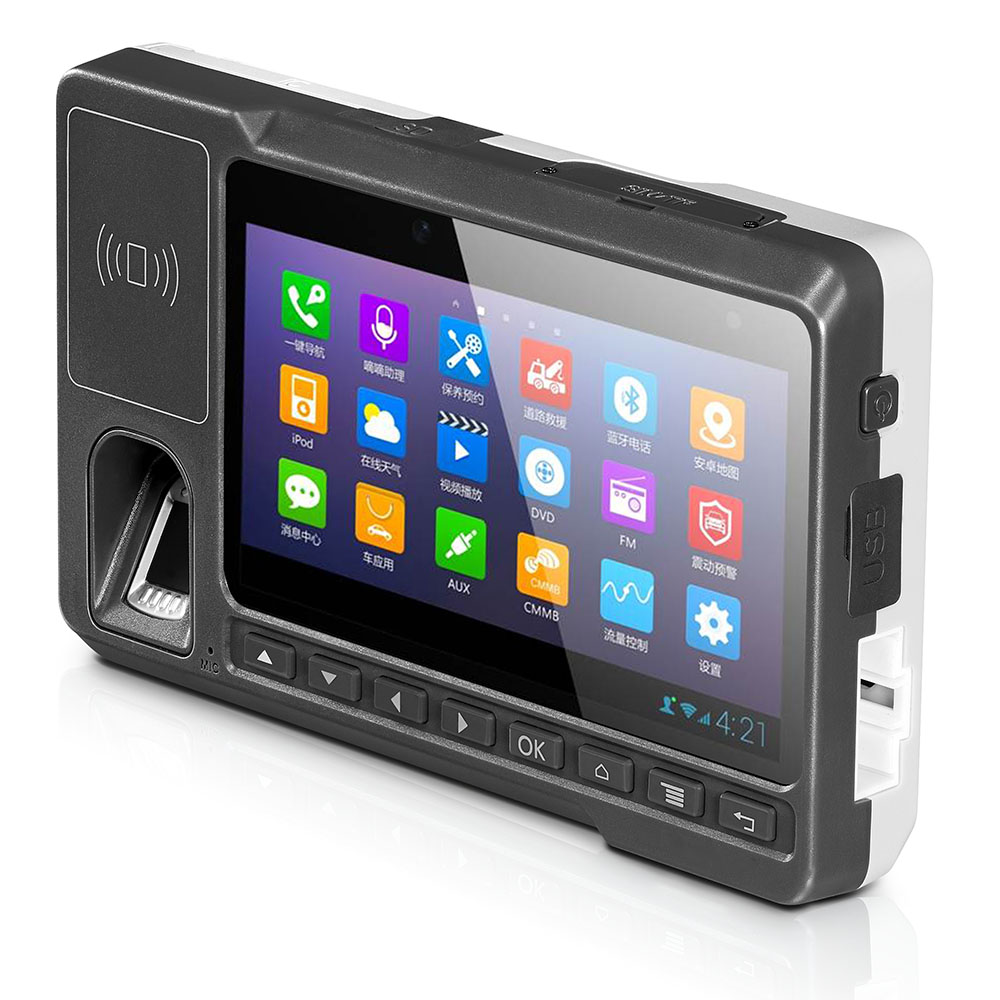

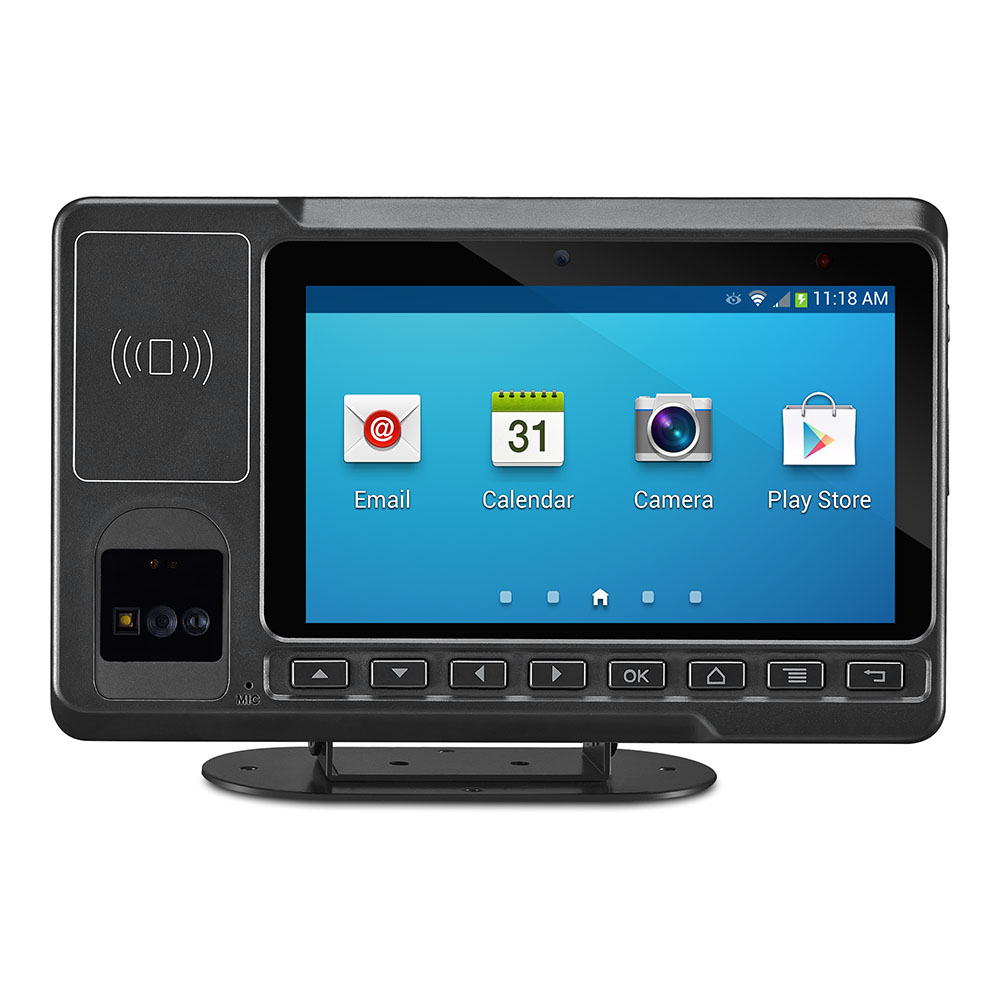

PEV600 Vehicle Computer
An Android vehicle computer based on Qualcomm platform.
Configurated with multi-channel external camera, OBD data collection, IC card reading, accurate GPS and fingerprint recognition, the vehicle computer can fully realize the overall management of school buses, transit buses, touring coaches, freight trucks, taxis, etc., effectively ensuring traffic safety.
Product description
Overview

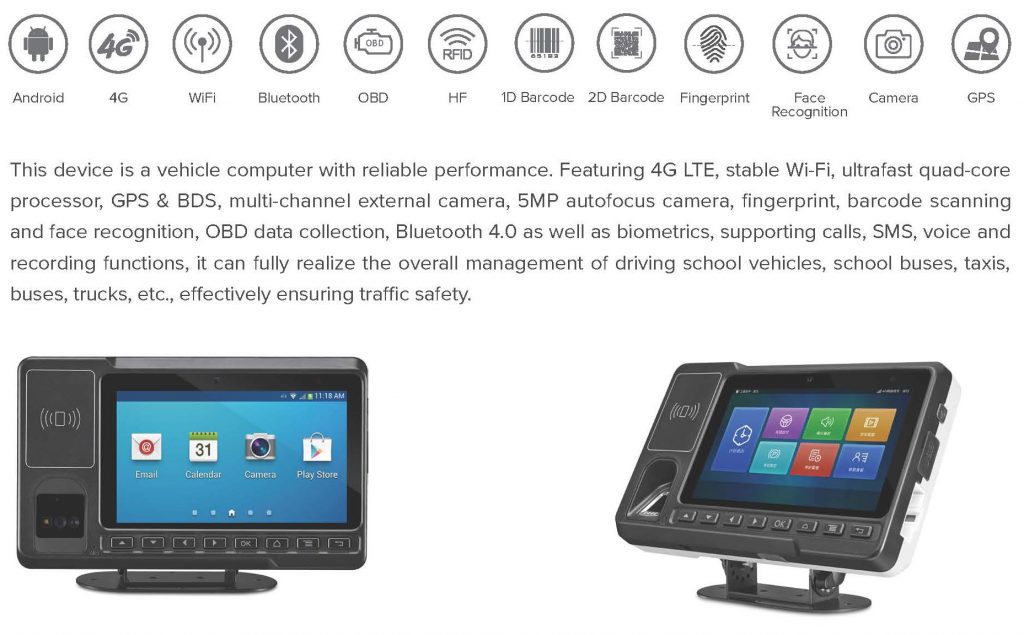

This device is a vehicle computer with reliable performance. Featuring 4G LTE, stable Wi-Fi, ultrafast quad-core processor, GPS & BDS, multi-channel external camera, 5MP autofocus camera, fingerprint, barcode scanning and face recognition, OBD data collection, Bluetooth 4.0 as well as biometrics, supporting calls, SMS, voice and recording functions, it can fully realize the overall management of driving school vehicles, school buses, taxis, buses, trucks, etc., effectively ensuring traffic safety.
Specification
| Physical Characteristics | |
| Dimension | 188mm×115mm×29mm / 7.40×4.53×1.14in |
| Display | 5.5″ 720P TFT-LCD capacitive touch panel, 16.7M colors, adjustable backlight brightness |
| Expansion Slot | 1 SIM, 1 TF, 1 SD, 1 HF slot |
| Interface | Micro USB, USB type A, OTG |
| Input Mode | Touch input |
| Audio | Speaker, microphone; supporting voice calls |
| Keypad | 8 function keys |
| Sensor | Gravity sensor, gyroscope |
| Performance | |
| Option 1 |
CPU: Qualcomm 1.3 GHz quad-core; |
| Option 2 | CPU: Qualcomm 1.3 GHz quad-core; RAM+ROM: 1GB+8GB |
| Expansion | Supports a total of 64GB by SD and TF cards |
| User Environment | |
| Input Voltage | 9V-60V |
| Operating Temp. | -4oF to 122oF / -20oC to 50oC |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5%RH – 95%RH non condensing |
| ESD | ±8KV air discharge, ±4KV conductive discharge |
| Developing Environment | |
| Operating System | Android 5.1 |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse/Android Studio |
| Communication | |
| WLAN | IEEE802.11 b/g/n |
| WWAN(E) | 2G: GPRS (900/1800MHz) |
| 3G: WCDMA B1 B8 | |
| 4G: FDD-LTE: B1 B3 B7 B8 B20 | |
| WWAN(N) | 2G: GPRS (850/1900MHz) |
| 3G: WCDMA B2 B5 | |
| 4G: FDD-LTE: B2 B4 B5 B7 B17 | |
| WWAN(C) | 2G: GPRS (850/900/1800/1800MHz) |
| 3G: WCDMA: B1 | |
| CDMA EVDD: EVDD Rev.A800MHz | |
| TD-SCDMA: B34 B39 | |
| 4G: TDD-LTE: B38 B39 B40 B41 | |
| FDD-LTE: B1 B3 | |
| Bluetooth | Bluetooth 4.0 |

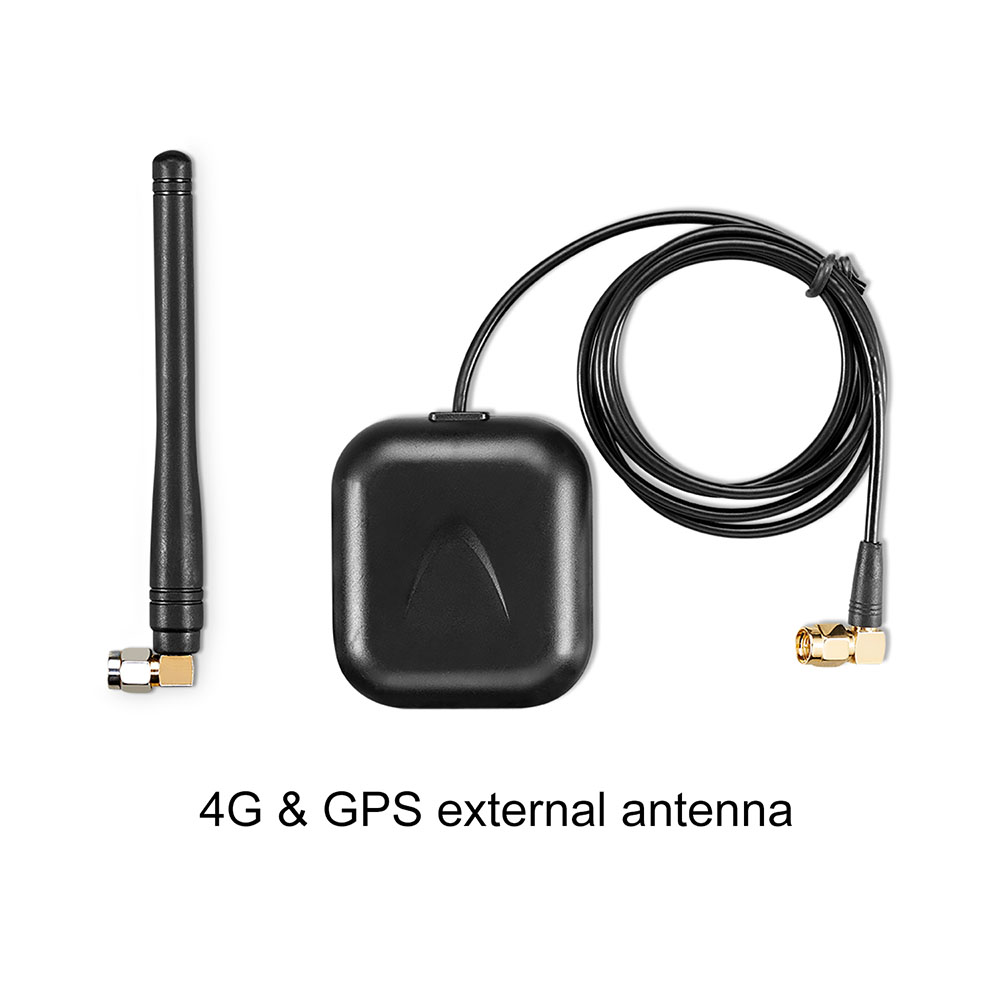

| GNSS | GPS, A-GPS, BeiDou (optional) |
| Data Collection | |
| Front Camera | GC 5MP Autofocus |

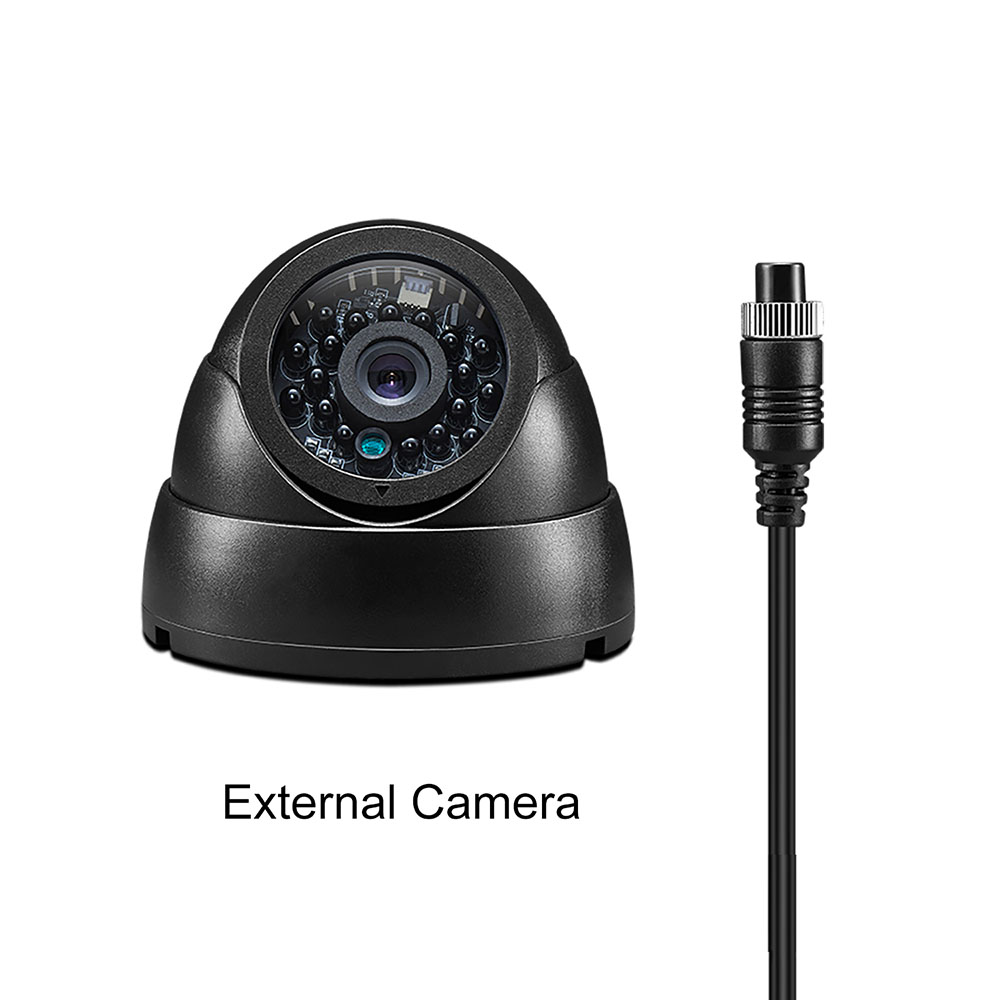

| External Camera (Optional) | |
| * Multi-channel (with infrared lamp), taking photos and videos simultaneously | |
| Resolution | 320×240, 640×480, 1280×720 |
| Fps | YUY2: 720p/15fps, VGA/30fps, CIF/30fps |
| MJPEG | 720p/30fps, VGA/60fps, CIF/60fps |
| RFID | |
| HF | NXP |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, 15693 |
| Chips | 1) MF1 card (S50/S70), MF0 (Ultra-light), MF3 (Desfire D40/D41/D81), CPU_A card |
| 2) CPU_B card | |
| 3) Others for customization | |
| Fingerprint (Optional) | |
| Sensor | TCS2SS |
| Size | 256×288 |
| Resolution | 508DPI |
| Memory | 1,000 PCS fingerprints |
| Barcode Scanning (Optional) | |
| * Barcode scanning is alternative to fingerprint recognition. | |

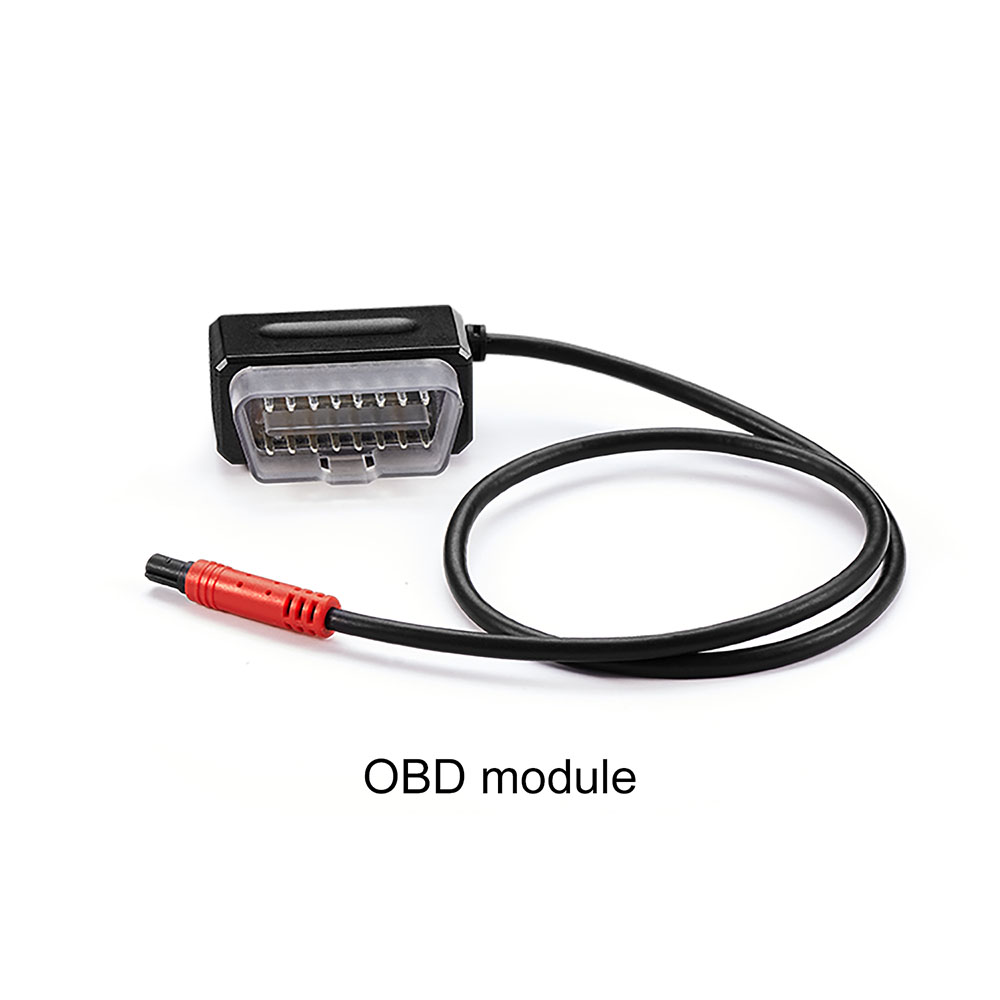

| OBD (optional) | |
| Protocol | OBDII, ISO9141-2, ISO14230 (KWP), ISO15765 (CANBUS) |
