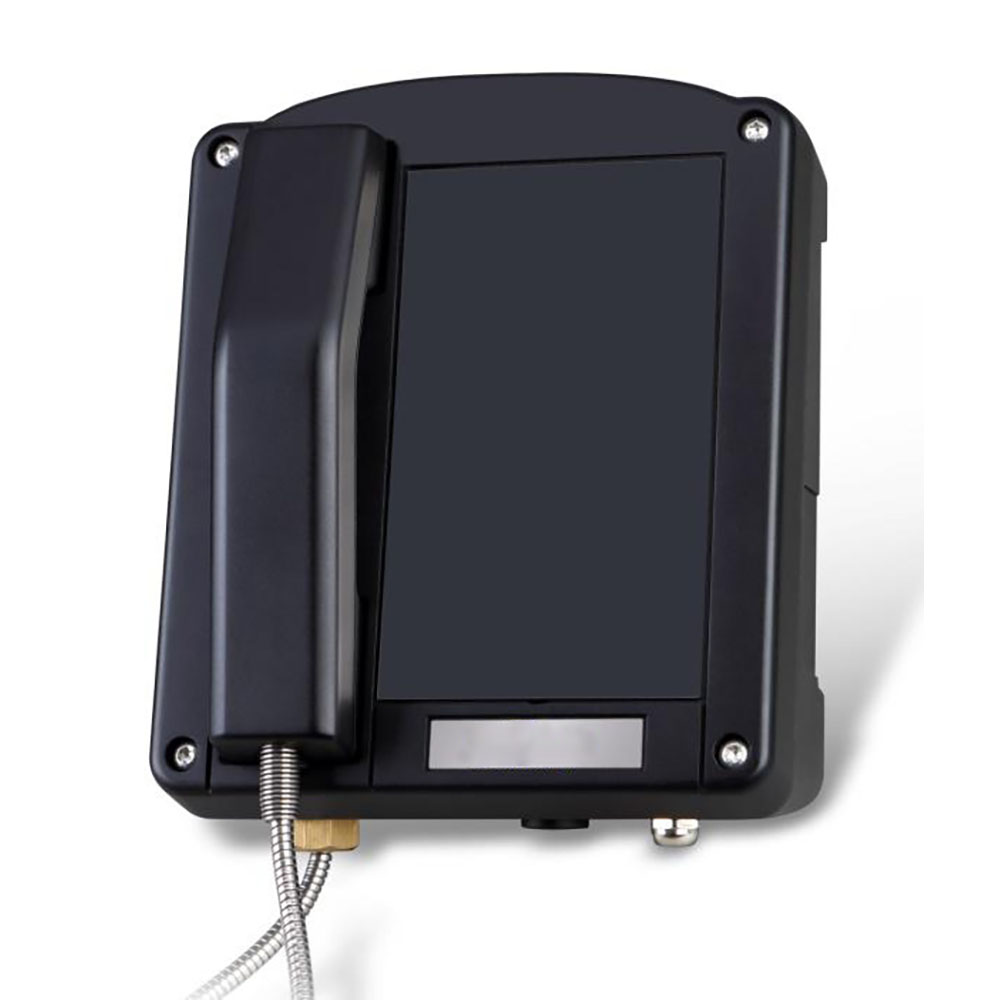

PEEX2 explosion-proof analog phone
IECEx Analog Telephone
1. Robust body vandal resistant
2. Analogue explosion-proof telephone matching with most PABX, PBX and PAX system.
3. Busy tone detection for auto release the line if line busy
4. Dry contact for external control automation
5. Auto answer function
6. Full Soft lock: only dial out from phone book 50 memory address number
7. Half soft lock: limit to dial out starting number, e.g. “00886” area code
8. Ring sound 95 dB dfd in 1 m and 10 ringing tone melodies selectable
9. Listening by loudspeaker: 70dB in 1m
10. Phone book memory: 50 addresses (name & number) programmable
11. Stainless steel keypad for dial and manuel
12. Magnetic reed hook-switch
13. No external power or battery required. Telephone line powered.
14. High temperature approval
Product description
Specification
| Dimension | 227×293×135mm |
| Weight | 5.8kg |
| LCD Display |
2 line alphanumerical display ICON or number or letter; Up to 4 level back light selectable; |
| Keypad |
Stainless steel flash mounts Waterproof IP66; Ice protection; 21 keys with number and ACE letter for program; |
| Handset |
dynamic receiver with inductive coupling for hearing aids; Electret type microphone with noise cancelling; Stainless steel armoured handset hold over 170kg; |
| Waterproof protection | IP66 |
| Impact protection | IK09 |
| Call Flash transfer | max: 120ms |
| Dialing procedure | DTMF |
| External function | external louder speaker; additional earpiece; headset; ring sounder; |
| operation temperature | -25℃ to 60℃ |
| Storage temperature | -30℃ to +70℃ |

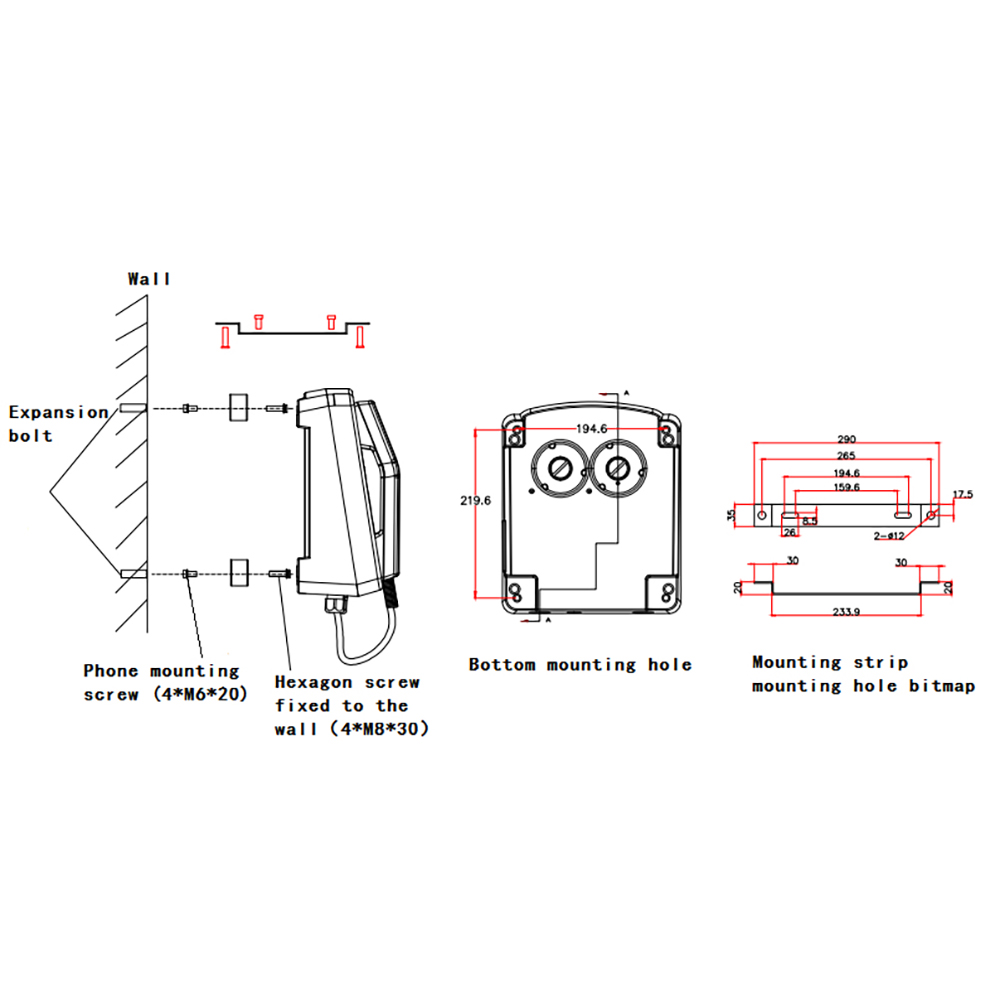

Installation
