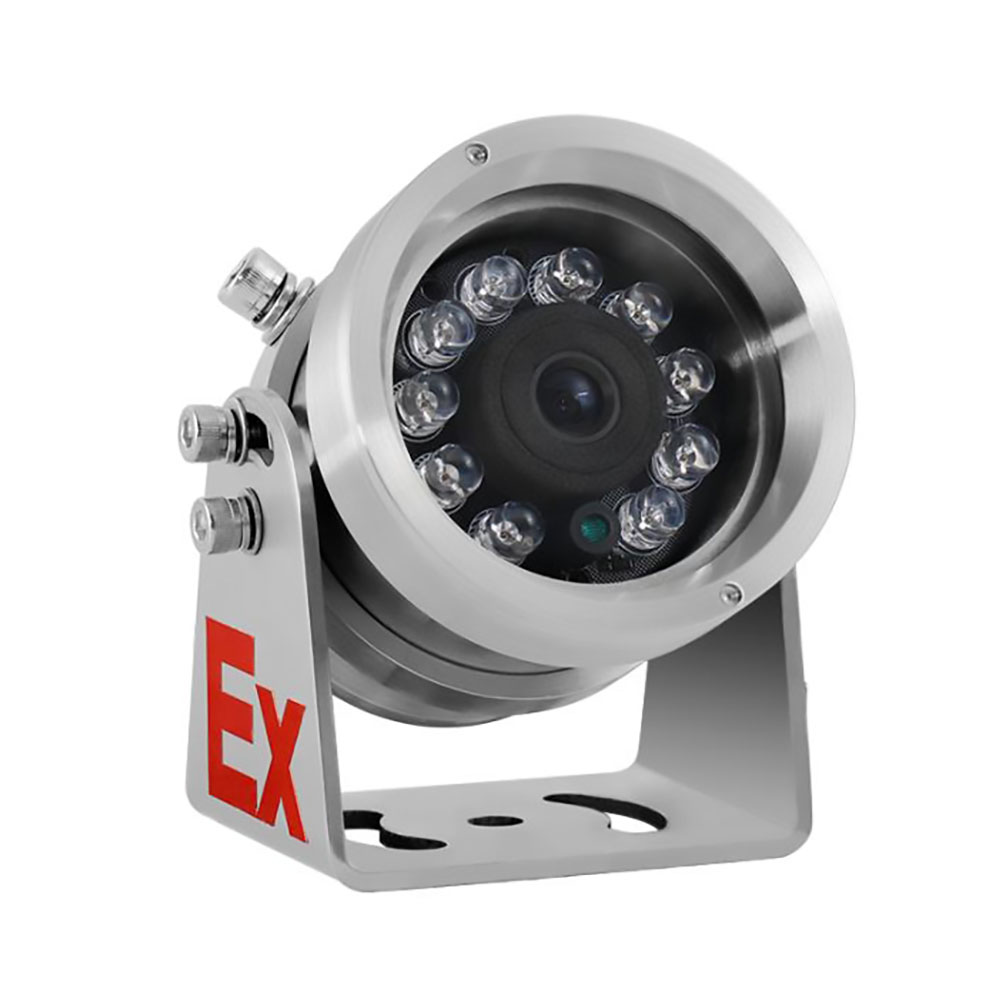

PEC-Ex-MS1080P Explosion-Proof Camera
Applicable for the factories having the explosive mixtures formed from class IIA, IIB and IIC T1-T6 group flammable gas, steam with air in area No.1, No.2,
Appearing the explosive hazardous area due to the mixture of flammable dust and air in area No. 20, No. 21 and No. 22, such as oil field, chemical plant, port, oil storage, steamship, oil drillingplatform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage and so on.
Product description
Feature
1. Small volume, light weight, flexible installation, it can work with GPS, car DVR and recorder, act as image acquisiton tool in monitoring system of dangerous goods logistics transportion.
2. 5-million piexls 1/2.5″CMOS sensor, 2-millioneffective pixels, with faster operation speed digital processor, it can compress bigger size and more clear pictures.
3. Matching advanced video compression algorithms operating system, make the transmission of the pictures more fluid and showed more clarity.
4. Support remote visit image via Internet Explore, support dynamic IP address, it’s convenient to relize the network transmission of the image.
5. 15m-25m visible infrared distance, high quality image showed even in badly lighting areas.
6. Optics class toughened ultra-clear white explosion-proof glass, flux rate higher than 96%, eliminate infrared light halo completely.
7. Invisible nano wiper，non-stick water, non-stick oil, dust-proof.
8. Made by high grand 304 stainless steel, explosion-proof, dust-proof, water-proof, 304 stainless steel with original color surface treatment, corrosion-proof.
9. Intelligent 3D ring design, camera can be installed at any angle, adjusted to obtain aclear horizontal image.

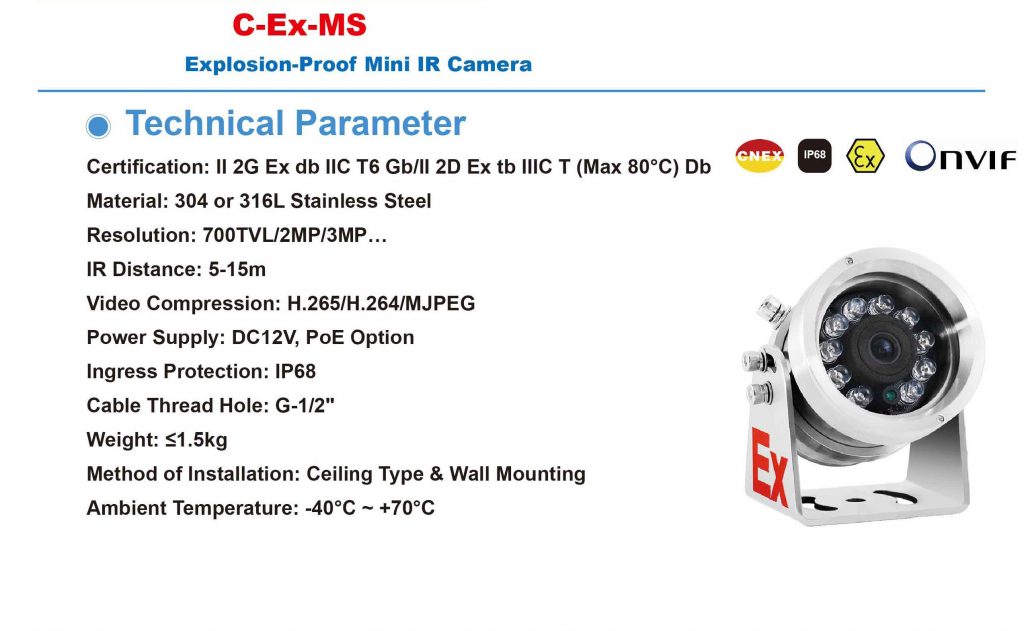

Specification
| Certificate of Conformity | ||
|
Marking |
Ⅱ2G Ex db ⅡC T6 Gb / Ⅱ2D Ex tb ⅢC(85℃)Db |
|
|
Cer.No. |
IEP 14 ATEX 0253 |
|
|
Mechanical Features |
||
|
Material |
304 Stainless Steel |
|
|
Surface Treatment |
Original Stainless Steel Color, Electropolishing Optional |
|
|
Ingress Protection |
IP68 |
|
|
Interface Spec |
G-1/2″ |
|
|
Weight |
≤1.6kg【Stainless Steel】 |
|
|
Method of Installation |
Ceiling Type & Wall Mounting |
|
| Electrical Features | ||
|
Power Supply |
DC12V |
|
|
Working Current |
≤1A |
|
|
Camera |
Image Sensor |
1/2.5” progressive scan high sensitivity CMOS sensor |
|
Resolution |
1080P |
|
|
Lens |
4mm/6mm/8mm/12mm |
|
|
Signal-to-Noice Ratio |
＞52db |
|
|
Min.Illumination |
0Lux(infra-red on) |
|
|
Infrared |
Distance |
15-25m |
|
Wavelength |
850nm |
|
|
ON/OFF |
Auto(≤10Lux) |
|
|
Electrical Connectivity |
Composite Cable |
|
|
Environmental |
||
|
Rated Temperature |
（-30℃，+70℃） |
|
|
Atmospheric Pressure |
80-106KPa |
|
|
Relative Humidity |
≤95%RH(+25℃) |
|
