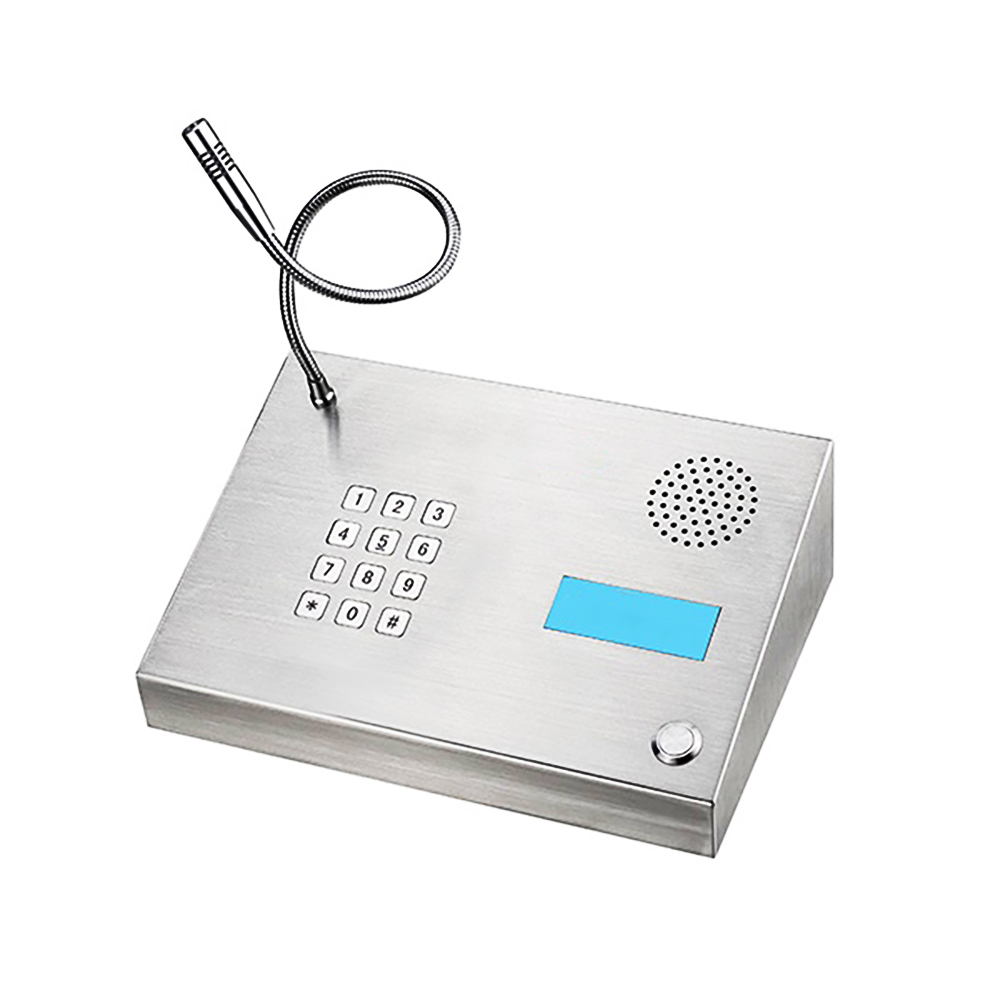

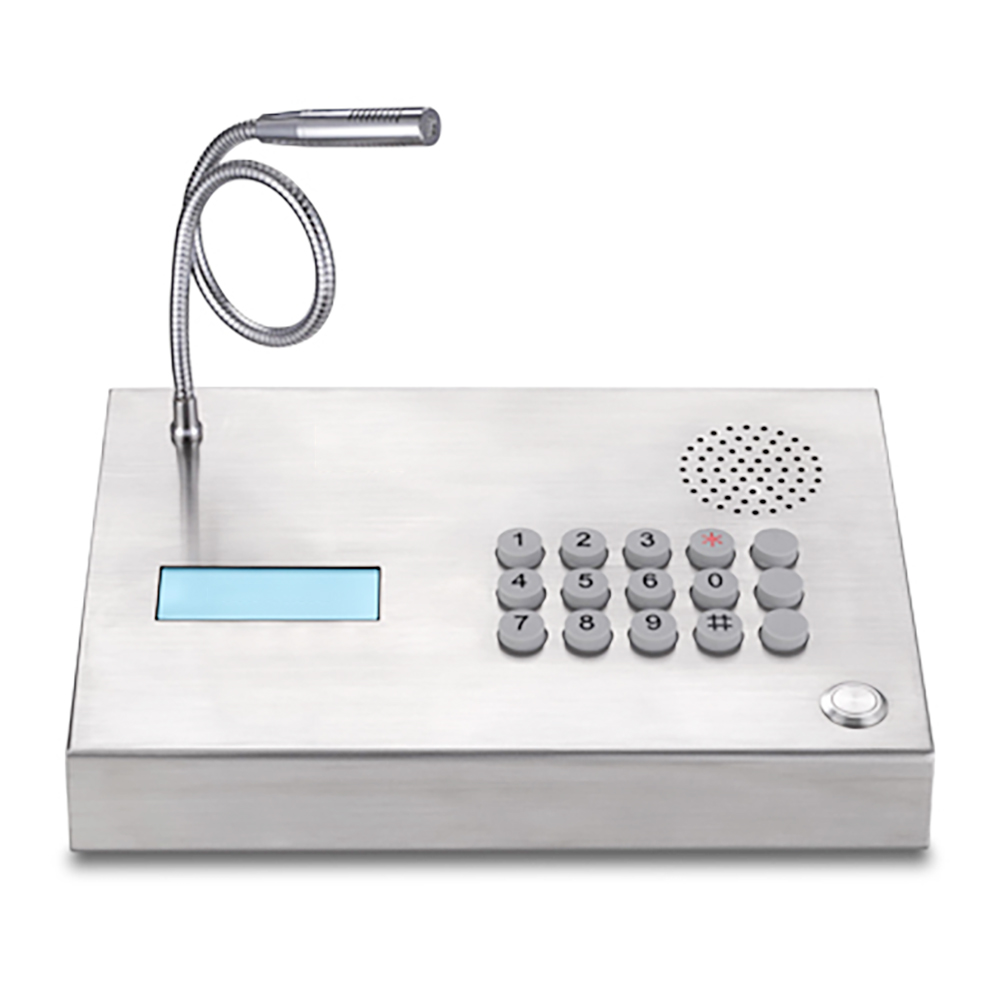

PE59ZD Intercom Phone
Matching with most IP PABX, PBX and PAX systems.
1. Main body with whole stainless steel body, solid and temperature bearable
2. Handset free, 3w loudspeaker,
3. Resume lightning proof protection automatically standard to ITU-T K21
4. Waterproof grade is IP55
5. The metal shell is provided with grounding connection device and is absolutely insulated with inner circuit and electric , then has the effect of electromagnetism shield.
6. Support hotline call, can realize ring off automatically if the other side close.
7. Totally adopt SMTC craftwork keep very good quality.
8. The design is super thin and smart. Embed style and hanging style can be chosen.
9. Every call is limited(set by five minutes), auto ring off if time exceeded. (Optional)
10.The telephone has passed the certificate of ISO9000(2000)
11. Support speed dial with free dial simultaneously. Speed dial 10 groups or 3 groups optional.
Product description
Description
1. Strong compatibility of the system extended, support standard SIP 2.0 (RFC3261) and related RFC agreement;
2. Support one bottom calls the dispatcher station, host, and specify the terminal;
3. Support digital keyboard;
4. Support three shortcuts keypad;
5. Provides alarm, monitor, intercom, broadcast function;
6. full-duplex talk functions;
7. Use advanced echo elimination technology;
8. Application: show Caller ID, Contacts.
9. Speakers and microphone sensitivity adjustable;
10. Optional G.729, G.723, G.711, G.722, G.726 and many ways of voice coding;
11. System provides the recording and query the recording files at any time;
12. Setting via a WEB interface;
13. Online software upgrade;
14. Support power 1w;
15. Cast made of stainless steel,
16. One-touch calls, or direct dialing,
17. With gooseneck microphone and LCD display.
Specification
| Protocol | SIP 2.0 (RFC-3261) | |
| Master Chip | Broadcom 1190 | |
| Keypad | Enclosure design | Stainless steel |
| Number | Full digital keypad, 3 shortcut (customizable), one hands-free button | |
| Display | LCD Screen | 1 pcs |
| Voice | Hands-free microphone | 1 pcs |
| Amplifier | 3W | |
| Speaker | 3W | |
| Onboard power amplifier bypass jump line | Support | |
| Volume control | Adjustable | |
| Full duplex hands-free | Support (AEC) | |
| Head phone jack | Support | |
| Handset jack | Support | |
| Voice stream | Support protocol | RTP |
| C-Codec | G.729, G.723, G.711, G.722, G.726 | |
| Connection | Power supply | 5V -15 (+-15%)/1A, DC or PoE |
| PoE( IPGB-1verion not support) | PoE 802.3af (Class1) 48V | |
| LAN | 10/100BASE-TX s Auto-MDIX, RJ-45 | |
| WAN | 10/100BASE-TX s Auto-MDIX, RJ-45 | |
| Recommend cable | Cat5e or higher | |
| LCD | Support (optional) | |
| RS232 | Aluminum cover, aluminum bottom case | |

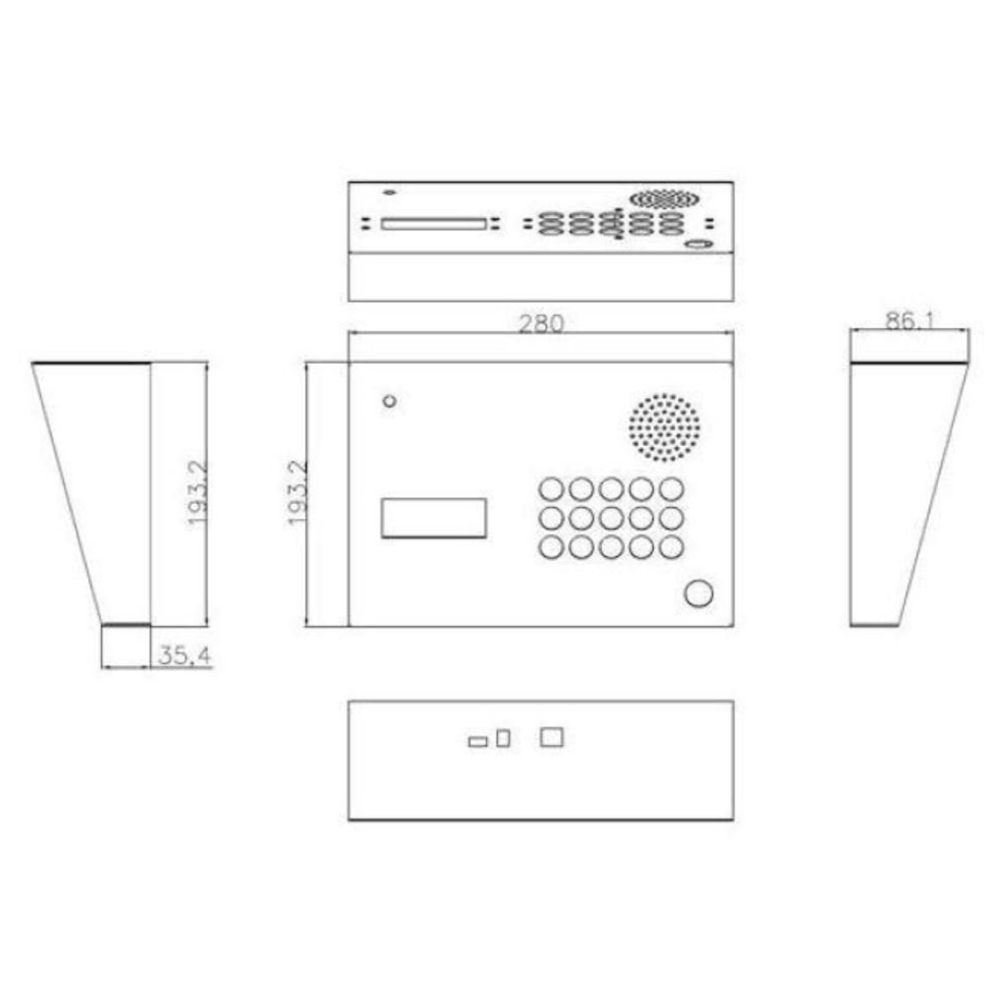

Dimension
